| MODEL
EDC WAIST HIGH SECURITY GATE |
|
Select
a feature or option to view further details.
FEATURES (ELECTRIC)
OPTIONS |
 |
|

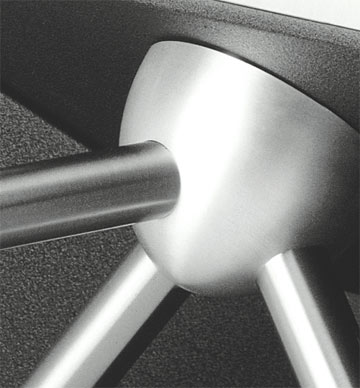

No Exposed Bolt or Fasterners - This close-up view of the EDC shows the unique, bullet-style aluminum head and stainless steel arms. The EDC design includes no exposed bolts or fasteners. | Back to Top | |
 |
 |
Stainless Steel Components - EDC turnstiles feature stainless steel investment grade castings and hardened stainless steel locking components to ensure a consistent, smooth rotation and years of trouble-free service.. | Back to Top | |
|
Locking Hinged Lid - Internal components are secured via a hinged, locking, stainless steel lid | Back to Top | |
 |
 |

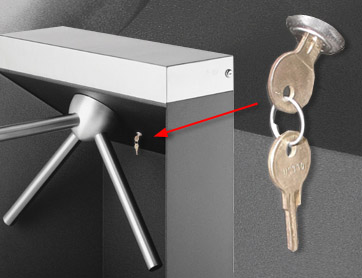

Key Override Controls - Mechanical key override controls allow an attendant to override the access control system and manually unlock one or both directions of the turnstile. This feature is standard on all Fail Lock EDC models. | Back to Top | |
|
Dampened Arm Rotation - The EDC turnstile's comfortable patron passage width is combined with a smooth, self-centering, hydraulically dampened arm rotation. | Back to Top | |
 |
 |
Electrical Features - 110VAC input is stepped down and rectified for low voltage 12VDC operation. Other features include junction box with dual power receptacle and on/off power switch. All electric models have been tested and approved by City of Los Angeles Dept. of Building and Safety (Underwriters Laboratories Standard UL-325). | Back to Top | |
|
Activation Interface - Alvarado's EDC turnstiles are activated (unlocked) by supplying an isolated, momentary dry contact. No additional interface relay is required. | Back to Top | |
 |
 |
Timed Delay Auto Relock - Once activated (unlocked) the user has 20 seconds to pass through the turnstile. If not rotated within the 20 second time period, the turnstile will automatically relock. No additional time delay relay is required. As an option, an Adjustable Timed Delay Auto Relock is also available, which allows adjustments or disabling of the time delay relock. | Back to Top | |
|
Turnstile Rotation Feedback Signal - A feedback signal in the form of a relay output is sent each time there is a turnstile rotation. Individual signals are provided for each direction of rotation. | Back to Top | |
 |
 |
Fail Safe Option - This EDC turnstile option replaces the standard Fail Lock mode. The Fail Safe option allows free rotation upon loss of power for one or both electrically controlled directions. | Back to Top | |
| Counters
- EDC turnstiles are available with resettable or non-resettable
lithium battery powered counters recessed into the turnstile.
| Back to Top | |
 |
 |

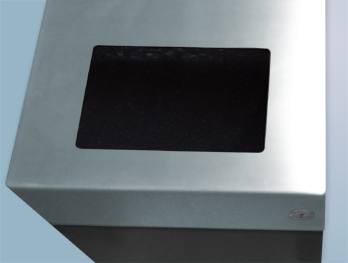

Reader
Mounting/Cutout - EDC's may be ordered with a cutout and internal
mounting hardware for most card reader systems, and can also accomodate
externally mounted readers.
| Back to Top | |
| Red/Green
Status Lights - When used with access control systems, the EDC
may be ordered with Red/Green Status Lights. The Green LED pattern
is activated when a valid card is scanned, indicating that the turnstile
is momentarily unlocked to permit a single passage. The Red LED
pattern shows that the turnstile remains in locked status.
| Back to Top | |
 |
 |
Red/Green/Yellow
Status Lights - When used with access control systems, EDC turnstiles
may be ordered with Red / Green / Yellow status lights. Yellow LED's
show the turnstile is ready to scan. A valid scan unlocks the turnstile
and is indicated by the Green LED pattern. Invalid scans cause the
turnstile to remain locked and are indicated via the Red LED pattern.
| Back to Top | |
|

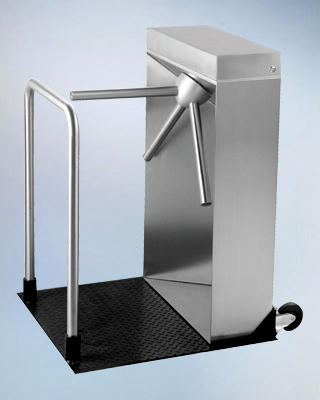

Portable Base - EDC turnstiles may be ordered as portable units affixed to a non-skid base, with handle, wheels and guide rail. | Back to Top | |
 |
 |
Serial
Interface - This option allows the turnstile to communicate
with a PC or controller via RS-232 serial communication.
| Back to Top | |
|One
Year Limited Warranty|
