Select a feature or option to view further details.

FEATURES (ALL)

• Comfortable Passage Width

• Single or Bi-directional Models

• Fully Welded Steel Construction

• Steel Kick Plate

• Self Closure Mechanism

• Hydraulic Dampener
  (single direction gates only)

FEATURES (ELECTRIC)

• Low Voltage Operation

• Electric Locks/Activation


OPTIONS

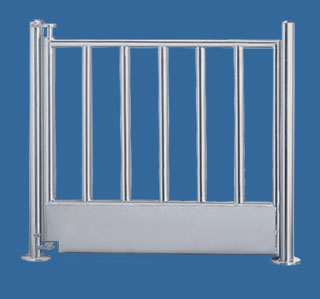

• Extended Gate Arms

• Gate Status Relay


Comfortable Passage Width - When fully open, VRG(X) gates feature approximately 36" of passage width clearance, depending upon model/lock configuration.

| Back to Top |

Single or Bi-Directional Gate Swing - Single direction gates include a stop tab and are available with right hand (shown) or left hand swing. Bi-directional gates swing in either direction.

| Back to Top |

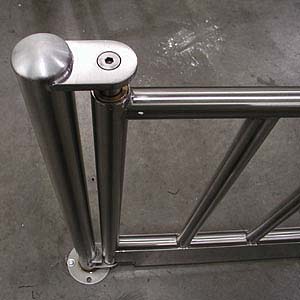

Fully Welded Construction - VRG(X) gate arm assemblies and posts are constructed from tubular stainless steel. with all welds ground and polished smooth.

| Back to Top |

Kick Plate - VRG(X) gates feature a steel kick plate welded to the bottom of the gate arm assembly.

| Back to Top |

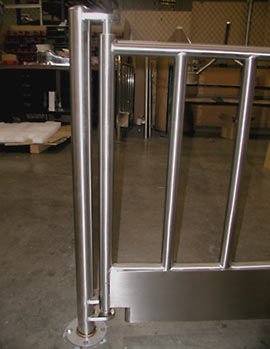

Self-Closing - VRG(X) gates include a gravity closure mechanism that automatically swings the gate arm back to the closed position after passage.

| Back to Top |

Hydraulic Dampener - Single direction VRG gates feature a hydraulic dampener to prevent the gate arm from slamming.

| Back to Top |

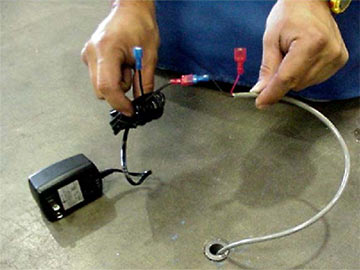

Low Voltage Operation - Standard input power requirement is 120 VAC. Primary power is stepped down and rectified for low voltage 12 VDC operation. The included step down transformer is shown being connected to conduit lead wires.

| Back to Top |

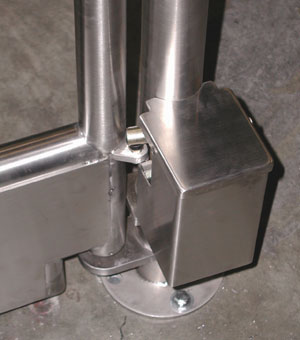

Activation - VRGX gates feature an Electric Strike Lock which is activated via dry contact switch. Standard configuration is Fail-Safe.

| Back to Top |

| Back to Top |
