MODEL MSG
FULL HEIGHT SECURITY GATE

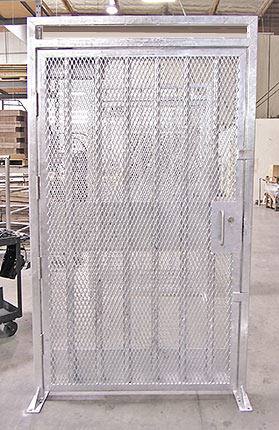

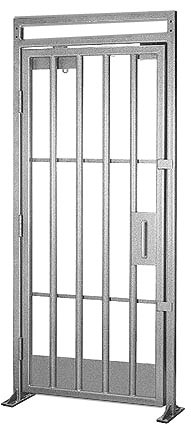

The MSG full height security gate is designed for maximum security applications.

Often used in conjunction with full height turnstiles, the self-closing MSG is a single-direction swing gate with a standard passage width of approximately 3 feet. Features include fully welded steel construction, plus a hydraulically dampened closure mechanism.

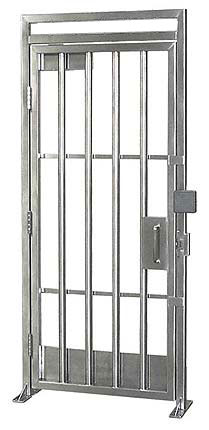

The standard gate (MSG) comes with deadbolt lock, and is secured with infill steel mesh welded to the gate. Electric lock controled gates (MSGX) that integrate with access control/identification systems are also available. Gates are shipped fully assembled, ready for installation.

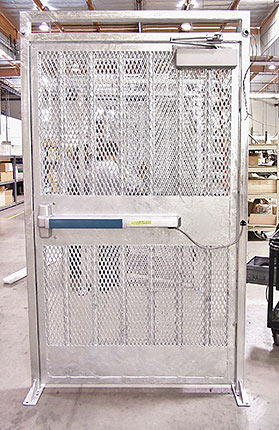

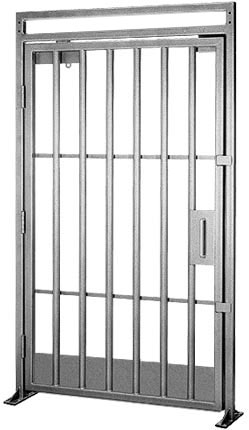

Standard models include the MSGX-PX with infill mesh, mag-lock entry control, and microswitch push bar exit, and the MSGX-E with infill mesh, electric strike and manual key control entry, plus mechanical push release exit bar. All MSG models may be ordered in 36" and 48" passage widths, and are available in #304 stainless steel polished to a #4 satin finish, galvanized, or color powder coat.

For Complete Specifications Click Here
MODEL MSG  FULL HEIGHT SECURITY GATE
  • Fully Welded Steel Construction
  • Designed For Maximum Security
  • Allows Convenient Access For Deliveries
  • Manual & Electric Lock Controlled Models Available
  • Ships Fully Assembled, Ready For Installation

Pictures

ORDER FORM

Adobe Download
Center

Datesheets

MSG


Specifications

MSG
MSG-48


Drawings

MSG

Click Here for MSG Pricing
