Charleston Specification
guide
|
|
|
|
3 foot high
- A. Top
Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and
plugs
- B. Picket
Spacing: 20 spaces of 2"
- C. Pickets:
(with caps attached) 19 pieces of 7/8" x 1-12" x 35-5/8"
- D. Bottom
Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and
plugs
- E. Post:
4" x 4" x 64" for in ground installation. Note: NO WOODEN
POSTS NEEDED FOR SUPPORT
- F. Pickets
Caps: 19 pieces of 7/8" x 1-12" x 1" Pointed Picket Caps
|
 |
|
|

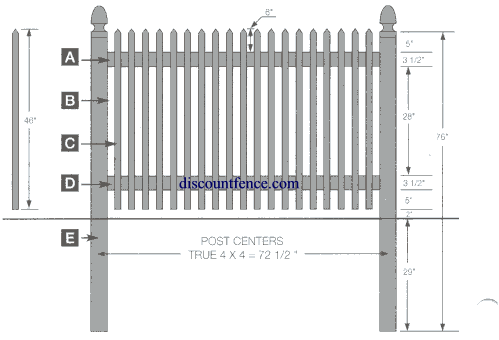

4 foot high
- A. Top
Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and
plugs
- B. Picket
Spacing: 20 spaces of 2"
- C. Pickets:
(with caps attached) 19 pieces of 7/8" x 1-12" x 45"
- D. Bottom
Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and
plugs
- E. Post:
4" x 4" x 76" for in ground installation. Note: NO WOODEN
POSTS NEEDED FOR SUPPORT
- F. Pickets
Caps: 19 pieces of 7/8" x 1-12" x 1" Pointed Picket Caps
|

|
|
|
|

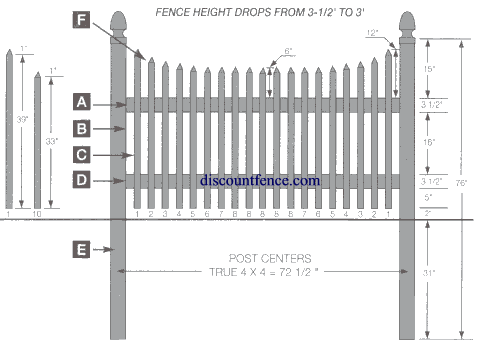

3 foot high concave
- A. Top
Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and
plugs
- B. Picket
Spacing: 20 spaces of 2"
- C. Pickets:
(with caps attached) 12 pieces of 7/8" x 3" varying from 39"
to 33" Two pickets of each height
- D. Bottom
Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and
plugs Drain holes are pre-drilled
- E. Post:
4" x 4" x 76" for in ground installation. Note: NO WOODEN
POSTS NEEDED FOR SUPPORT
- F. Pickets
Caps: 19 pieces of 7/8" x 1-12" x 1" Pointed Picket Caps
|
|
|

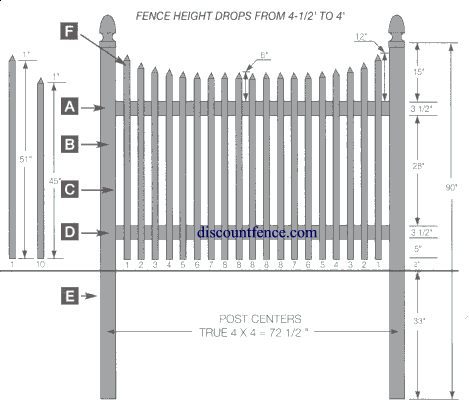

4 foot high concave
- A. Top
Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and
plugs
- B. Picket
Spacing: 20 spaces of 2"
- C. Pickets:
(with caps attached) 12 pieces of 7/8" x 3" varying from 51"
to 45" Two pickets of each height
- D. Bottom
Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and
plugs Drain holes are pre-drilled
- E. Post:
4" x 4" x 90" for in ground installation. Note: NO WOODEN
POSTS NEEDED FOR SUPPORT
- F. Pickets
Caps: 19 pieces of 7/8" x 1-12" x 1" Pointed Picket Caps
|
 |
|
|
