Chesterfield Specification guide

4 foot high

• A. Top Rail: 2" x 6" x 94-1/2" Channel to accept pickets.
• B. Picket Spacing: None
• C. Pickets: 13 pieces of 7/8" x 7" x 39-1/4" Tongue and Groove.
• D. Bottom Rail: 2" x 6" x 94-1/2" Channel to accept pickets. Includes steel reinforcement. Drain holes are pre-drilled.
• E. Post: 4" x 4" x 84" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.

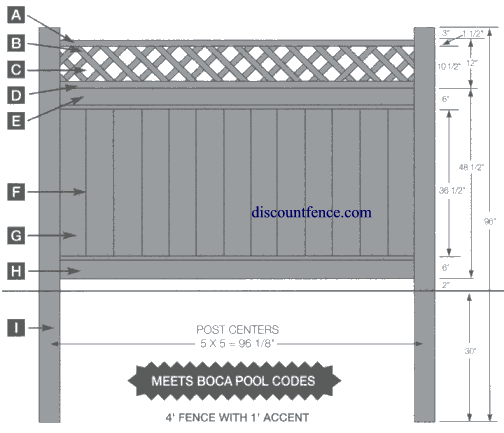

5 foot high with Lattice Accent

• A. Lattice Top Rail: 3" x 3" x 94-1/2" Channel
• B. Lattice Panel: 1 Piece of 13" x 90-3/4" 1-1/4" x 1/4" strips
• C. Horizontal Channel: 2 pieces of 3/4" x 1" x 90-3/4"
• D. Vertical Channel: 2 pieces of 3/4" x 1" x 13-1/8"
• E. Top Rail: 2" x 6" x 94-1/2" Deco Ribbed.
• F. Pickets: 7/8" x 7" x 34" Tongue and Groove.
• G. Bottom Rail: 2" x 6" x 94-1/2" Deco Ribbed. Includes steel reinforcement. Drain holes are pre-drilled.
• I. Post: 5" x 5" x 96" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.

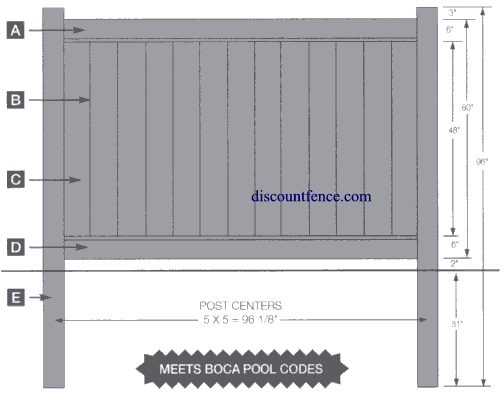

5 foot high

• A. Top Rail: 2" x 6" x 94-1/2" Channel to accept pickets.
• B. Picket Spacing: None
• C. Pickets: 13 pieces of 7/8" x 7" x 50-3/4" Tongue and Groove.
• D. Bottom Rail: 2" x 6" x 94-1/2" Channel to accept pickets. Includes steel reinforcement. Drain holes are pre-drilled.
• E. Post: 5" x 5" x 96" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.

6 foot high

• A. Top Rail: 2" x 6" x 94-1/2" Channel to accept pickets.
• B. Picket Spacing: None
• C. Pickets: 13 pieces of 7/8" x 7" x 62-3/4" Tongue and Groove.
• D. Bottom Rail: 2" x 6" x 94-1/2" Channel to accept pickets. Includes steel reinforcement. Drain holes are pre-drilled.
• E. Post: 5" x 5" x 107" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.

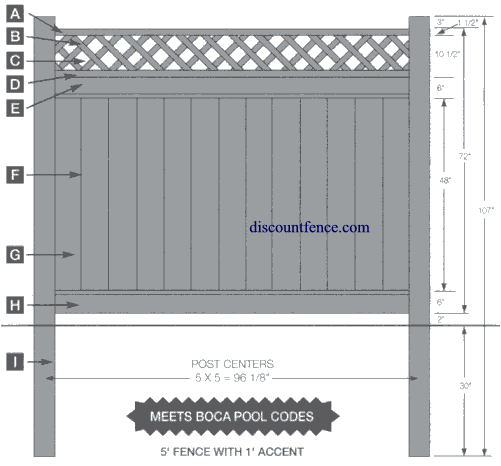

6 foot high with Lattice Accent

• A. Lattice Top Rail: 3" x 3" x 94-1/2" Channel
• B. Lattice Panel: 1 Piece of 13" x 90-3/4" 1-1/4" x 1/4" strips
• C. Horizontal Channel: 2 pieces of 3/4" x 1" x 90-3/4"
• D. Vertical Channel: 2 pieces of 3/4" x 1" x 13-1/8"
• E. Top Rail: 2" x 6" x 94-1/2" Deco Ribbed.
• F. Pickets: 7/8" x 7" x 46-1/4" Tongue and Groove.
• G. Bottom Rail: 2" x 6" x 94-1/2" Deco Ribbed. Includes steel reinforcement. Drain holes are pre-drilled.
• I. Post: 5" x 5" x 107" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.

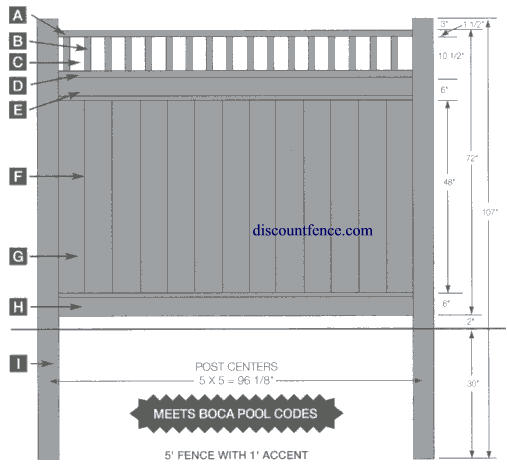

6 foot high with Victorian Accent

• A. Accent Top Rail: 3" x 3" x 94-1/2".
• B. Accent Picket: 17 pieces of 7/8" x 1-1/2" x 11-1/2"
• C. Accent Spacing: 3-5/8"
• D. Accent Bottom Rail: 1-1/2" x 1-1/2" x 94-1/2" Routed to accept pickets.
• E. Top Rail: 2" x 6" x 94-1/2" Channel to accept pickets.
• F. Picket Spacing: None
• G. Pickets: 13 pieces of 7/8" x 7" x 50-3/4" Tongue and Groove.
• H. Bottom Rail: 2" x 6" x 94-1/2" Channel to accept pickets. Includes steel reinforcement. Drain holes are pre-drilled.
• I. Post: 5" x 5" x 107" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT.
