Columbia Specification guide

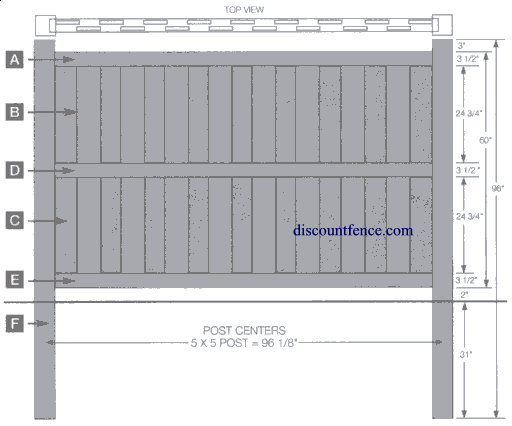

5 foot high

• A. 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets.
• B. 4-9/16"
• C. 17 pieces of 7/8" x 6" x 59-1/2"
• D.3-1/2"x3-1/2" x 94-1/2" - Routed through both sides to accept pickets.
• E. 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets. includes steel reinforcement channel. Drain holes are pre-drilled.
• E. 5" x 5" x 96" for in ground installation.

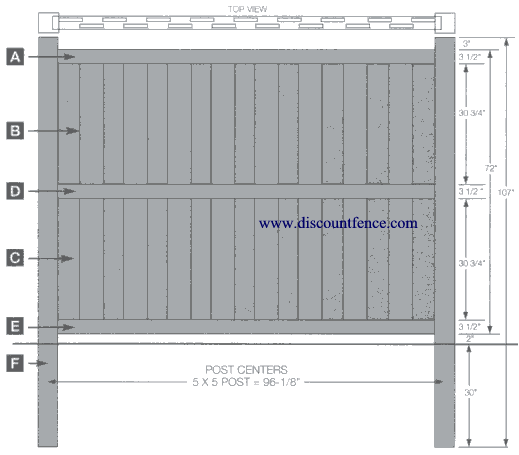

6 foot high

• A.Top Rail 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets.
• B. 4-9/16"
• C. 17 pieces of 7/8" x 6" x 71-1/2
• D.3-1/2"x3-1/2" x 94-1/2" - Routed through both sides to accept pickets.
• E. 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets. includes steel reinforcement channel. Drain holes are pre-drilled.
• E. 5" x 5" x 107" for in ground installation.

6 foot with Lattice Accent

• A. Top & Bottom Accent Rail : 1-1/2" x 1-1/2" x 94-1/2" Routed to accept pickts
• B. Lattice Panel 1 piece of 11-1/2" x 91"
• C. Lattice Spacing 3"
• D. Top Rail 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets.
• E. Picket Spacing: 4-9/16"
• F. Mid Rail 3-1/2"x3-1/2" x 94-1/2" - Routed through both sides to accept pickts
• G. Pickets: 17 pieces of 7/8" x 6" x 59-5/8" Ribbed
• H. Bottom Rail: 3-1/2"x3-1/2" x 94-1/2" - Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• I. Post: 5" x 5" x 107" for in ground installation.
