Imperial Specification guide

3 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Picket Spacing: 27 spaces of 9/16"
• C. Pickets: 26 pieces of 7/8" x 3" x 35-5/8"
• D. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• E. Post: 4" x 4" x 72" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT

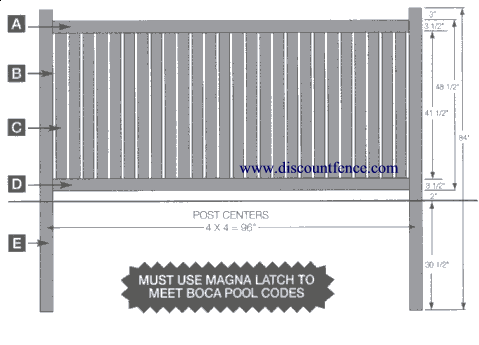

4 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Picket Spacing: 27 spaces of 9/16"
• C. Pickets: 26 pieces of 7/8" x 3" x 48"
• D. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• E. Post: 4" x 4" x 84" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT

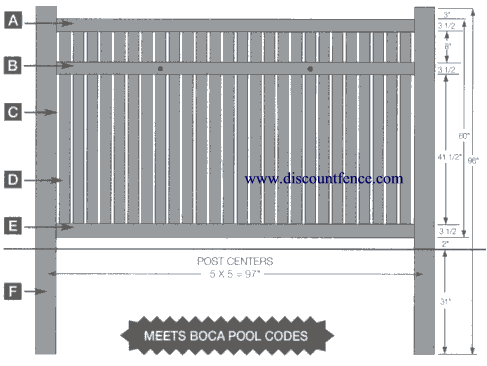

5 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Mid Rail 2" x 4" x 95-1/2" Routed through both sides to accept pickts
• C. Picket Spacing: 27 spaces of 9/16"
• D. Pickets: 26 pieces of 7/8" x 3" x 59-5/8"
• E. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• F. Post: 5" x 5" x 96" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT

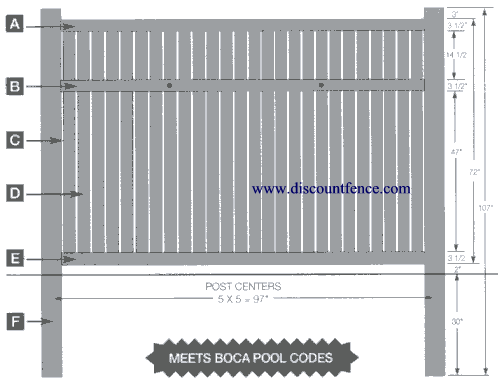

6 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Mid Rail 2" x 4" x 95-1/2" Routed through both sides to accept pickts
• C. Picket Spacing: 27 spaces of 9/16"
• D. Pickets: 26 pieces of 7/8" x 3" x 71-5/8"
• E. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• F. Post: 5" x 5" x 108" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
