Keystone Railing Specification guide

Close This Window

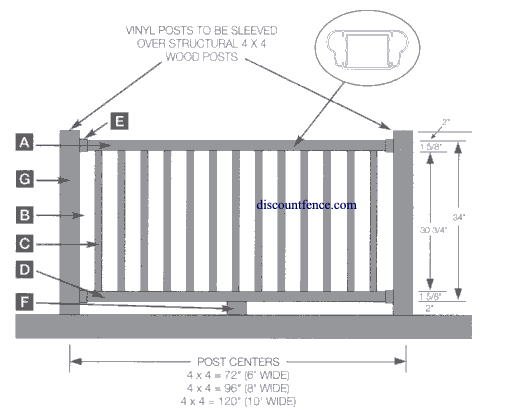

3 foot high

• A. Top Rail
  3-1/4" x 1-5/8" x 70"
  (6' wide)
  3-1/4" x 1-5/8" x 94"
  (8' wide)
  3-1/4" x 1-5/8" x 118"
  (10' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• B. Picket Spacing:
  14 spaces of 3-13/16"
  (6' wide)
  18 spaces of 3-13/16"
  (8' wide)
  23 spaces of 3-13/16"
  (10' wide)
• C. Pickets:
  13 pieces of 1-1/2"x
  1-1/2" 33-1/4" (6' wide)
  17 pieces of 1-1/2"x
  1-1/2" 33-1/4" (8' wide)
  22 pieces of 1-1/2"x
  1-1/2" 33-1/4" (10' wide)

• D. Bottom Rail: See A.
• E. Rail Mount Brackets
  4 per section

• F. Crush Block

• G. Post: 4" x 4" x 38" for above ground installation. F. Pickets Caps: 19 pieces of 7/8" x 1-12" x 1" Pointed Picket Caps

3 foot high Stair

• A. Top Rail
  3-1/4" x 1-5/8" x 70"
  (6' wide)
  3-1/4" x 1-5/8" x 94"
  (8' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.

• B. See A.
• C. Pickets:
  11 pieces of 1-1/2"x
  1-1/2" 33-1/4" (6' wide)
  15 pieces of 1-1/2"x
  1-1/2" 33-1/4" (8' wide)

• D. Picket Spacing:
  12 spaces of 3-13/16"
  (6' wide)
  16 spaces of 3-13/16"
  (8' wide)
• E. Stair Rail Mount Brackets
  4 per section
• F. Post: 4" x 4" x 44" for above in ground installation.
