Manchester Specification guide

3 foot high

• A. Mid Rail: 3" x 3" x 94-1/2" Routed through both sides to accept Pickets. 1 piece per section. Drilled for Bullet Clips.
• B. Picket Spacing: 30 spaces of 1-9/16"
• C. Pickets: 29 pieces of 1-1/2" x 1-1/2"x 31-3/4" (32-1/2"with Cap). Special Wall Thickness. Pointed Caps attached. Bottom crimped to hold pickets in Rail.
• D. Bottom Rail: 2" x 6" 94-1/2" Ribbed routed to accept pickets. Includes steel reinforcement channel. Drilled to accept Lock Rings.
• E. Post: 5" x 5" x 72" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F Picket Caps: 1-1/2" x 1-1/2" x 3/4" Pointed Picket Caps.


4 foot high

• A. Mid Rail: 3" x 3" x 94-1/2" Routed through both sides to accept Pickets. 1 piece per section. Drilled for Bullet Clips.
• B. Picket Spacing: 30 spaces of 1-9/16"
• C. Pickets: 29 pieces of 1-1/2" x 1-1/2" (with Cap). Special Wall Thickness. Pointed Caps attached. Bottom crimped to hold pickets in Rail.
• D. Bottom Rail: 2" x 6" 94-1/2" Ribbed routed to accept pickets. Includes steel reinforcement channel. Drilled to accept Lock Rings.
• E. Post: 5" x 5" x 84" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F Picket Caps: 1-1/2" x 1-1/2" x 3/4" Pointed Picket Caps.

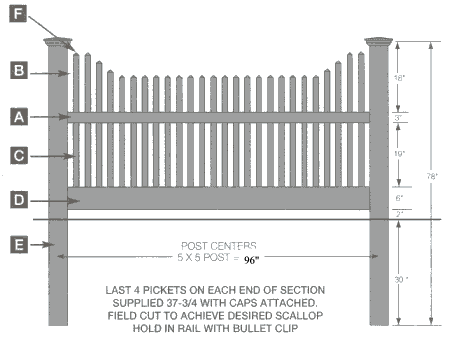

3 foot high Concave

• A. Mid Rail: 3" x 3" x 94-1/2" Routed through both sides to accept Pickets. 1 piece per section. Drilled for Bullet Clips.
• B. Picket Spacing: 30 spaces of 1-9/16"
• C. Pickets: 8 pieces of 1-1/2" x 1-1/2" x 37-3/4 (38-1/2 with Cap). 21 pieces of 1-1/2" x 1-1/2" x 31-3/4 (32-1/2" with Cap). Special Wall Thickness. Pointed Caps attached. Bottom crimped to hold pickets in Rail.
• D. Bottom Rail: 2" x 6" 94-1/2" Ribbed routed to accept pickets. Includes steel reinforcement channel. Drilled to accept Lock Rings.
• E. Post: 5" x 5" x 78" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F Picket Caps: 1-1/2" x 1-1/2" x 3/4" Pointed Picket Caps.

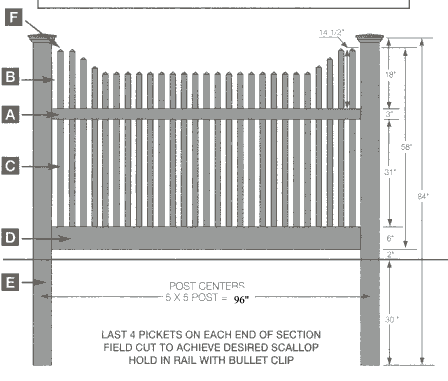

4 foot high Concave

• A. Mid Rail: 3" x 3" x 94-1/2" Routed through both sides to accept Pickets. 1 piece per section. Drilled for Bullet Clips.
• B. Picket Spacing: 30 spaces of 1-9/16"
• C. Pickets: 8 pieces of 1-1/2" x 1-1/2"x49-3/4 (50-1/2 with Cap). 21 pieces of 1-1/2" x 1-1/2" x 43-3/4 (44-3/4" with Cap).Special Wall Thickness. Pointed Caps attached. Bottom crimped to hold pickets in Rail.
• D. Bottom Rail: 2" x 6" 94-1/2" Ribbed routed to accept pickets. Includes steel reinforcement channel. Drilled to accept Lock Rings.
• E. Post: 5" x 5" x 84" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F Picket Caps: 1-1/2" x 1-1/2" x 3/4" Pointed Picket Caps.
