Olympia Railing Specification guide

Close This Window

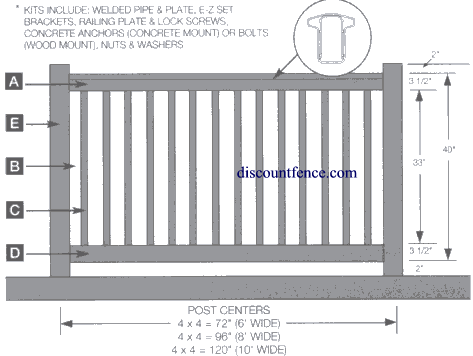

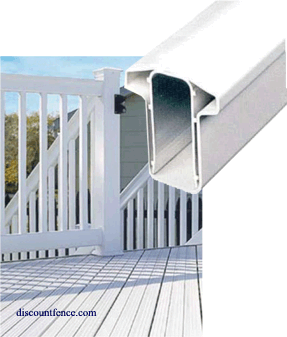

3 foot high

• A. Top Rail
  "T" Top x 71-1/2"
  (6' wide)
  "T" Top x 95-1/2"
  (8' wide)
  "T" Top x 118-1/2"
  (10' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• B. Picket Spacing:
  15 spaces of 3-3/8"
  (6' wide)
  20 spaces of 3-3/8"
  (8' wide)
  24 spaces of 3-3/8"
  (10' wide)
• C. Pickets:
  14 pieces of 1-1/4"x 1-1/4" 33-1/4" (6' wide)
  19 pieces of 1-1/4"x 1-1/4" 33-1/4" (8' wide)
  24 pieces of 1-1/4"x 1-1/4" 33-1/4" (10' wide)

• D. Bottom Rail:
  2" x 4" x 71-1/2" (6' wide)
  2" x 4" x 95-1/2" (8' wide)
  2" x 4" x 118-1/2" (10' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• E. Post: 4" x 4" x 38" for above ground installation.

3 foot high Stair

• A. Top Rail
  "T" Top x 71-1/2"
  (6' wide)
  "T" Top x 95-1/2"
  (8' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• B. Bottom Rail:
  2" x 4" x 71-1/2"
  (6' wide)
  2" x 4" x 95-1/2"
  (8' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• C. Pickets:
  11 pieces of 1-1/4"x 1-1/4" 37-3/4" (6' wide)
  19 pieces of 1-1/4"x 1-1/4" 37-3/4" (8' wide)


• D. Picket Spacing:
  12 spaces of 3-3/8"
  (6' wide)
  16 spaces of 3-3/8"
  (8' wide)
• E. Post: 4" x 4" x 52" for above ground installation.

3-1/2 foot high

• A. Top Rail
  "T" Top x 71-1/2"
  (6' wide)
  "T" Top x 95-1/2"
  (8' wide)
  "T" Top x 119-1/2"
  (10' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• B. Picket Spacing:
  15 spaces of 3-3/8"
  (6' wide)
  20 spaces of 3-3/8"
  (8' wide)
  25 spaces of 3-3/8"
  (10' wide)
• C. Pickets:
  14 pieces of 1-1/4"x 1-1/4" 39-1/4" (6' wide)
  19 pieces of 1-1/4"x 1-1/4" 39-1/4" (8' wide)
  24 pieces of 1-1/4"x 1-1/4" 39-1/4" (10' wide)

• D. Bottom Rail:
  2" x 4" x 71-1/2" (6' wide)
  2" x 4" x 95-1/2" (8' wide)
  2" x 4" x 119-1/2" (10' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• E. Post: 4" x 4" x 44" for above ground installation.

3-1/2 foot high Stair

• A. Top Rail
  "T" Top x 71-1/2" (6' wide)
  "T" Top x 95-1/2" (8' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• B. Bottom Rail:
  2" x 4" x 71-1/2" (6' wide)
  2" x 4" x 95-1/2" (8' wide)
  Routed to accept pickets. Includes aluminum reinforcement channel.
• C. Pickets:
  11 pieces of 1-1/4"x 1-1/4" 37-3/4" (6' wide)
  19 pieces of 1-1/4"x 1-1/4" 37-3/4" (8' wide)
• D. Picket Spacing:
  12 spaces of 3-3/8"
  (6' wide)
  16 spaces of 3-3/8"
  (8' wide)
• E. Post: 4" x 4" x 52" for above ground installation.
