Victorian Specification guide

3 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Picket Spacing: 18 spaces of 3-5/8"
• C. Pickets: 17 pieces of 7/8" x 1-1/2 x 36-5/8""
• D. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• E. Post: 4" x 4" x 72" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT


4 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Picket Spacing: 18 spaces of 3-5/8"
• C. Pickets: 17 pieces of 7/8" x 1-1/2 x 48"
• D. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• E. Post: 4" x 4" x 84" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT

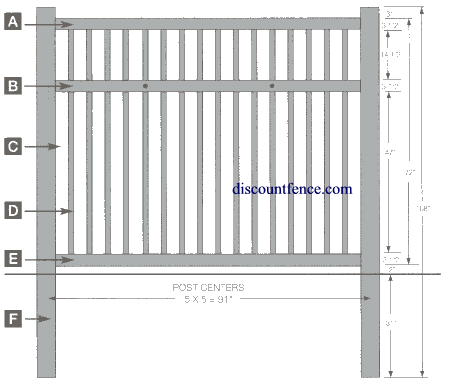

5 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Mid Rail 2" x 4" x 95-1/2" Routed through both sides to accept pickts
• C. Picket Spacing: 18 spaces of 3-5/8"
• D. Pickets: 17 pieces of 7/8" x 1-1/2 x 59-5/8"
• E. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• F. Post: 5" x 5" x 96" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT

6 foot high

• A. Top Rail: 2" x 4" x 95-1/2" Routed to accept pickts
• B. Mid Rail 2" x 4" x 95-1/2" Routed through both sides to accept pickts
• C. Picket Spacing: 18 spaces of 3-5/8"
• D. Pickets: 17 pieces of 7/8" x 1-1/2 x 71-5/8"
• E. Bottom Rail: 2" x 4" 95-1/2" Routed to accept pickets. Includes steel reinforcement channel. Drain holes are pre-drilled
• F. Post: 5" x 5" x 108" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
