Yorkshire Specification guide

3 foot high

• A. Top Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and plugs
• B. Picket Spacing: 13 spaces of 2-7/16"
• C. Pickets: (with caps attached) 12 pieces of 7/8" x 3" x 33"
• D. Bottom Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and plugs
• E. Post: 4" x 4" x 64" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F. Picket Caps: 12 pieces of 7/8" x 3" x 1" Dog Ear Picket Cap


4 foot high

• A. Top Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and plugs
• B. Picket Spacing: 13 spaces of 2-7/16"
• C. Pickets: (with caps attached) 12 pieces of 7/8" x 3" x 45"
• D. Bottom Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and plugs
• E. Post: 4" x 4" x 52" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F. Picket Caps: 12 pieces of 7/8" x 3" x 1" Dog Ear Picket Cap


3 foot high concave

• A. Top Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and plugs
• B. Picket Spacing: 13 spaces of 2-7/16"
• C. Pickets: (with caps attached) 12 pieces of 7/8" x 3" varying from 40" to 33" Two pickets of each height
• D. Bottom Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and plugs Drain holes are pre-drilled
• E. Post: 4" x 4" x 76" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F. Picket Caps: 12 pieces of 7/8" x 3" x 1" Dog Ear Picket Cap

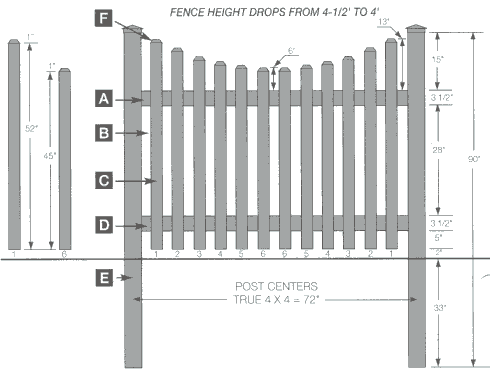

4 foot high concave

• A. Top Rail: 2" x 4" x 71-1/2" Drilled to accept fasteners and plugs
• B. Picket Spacing: 13 spaces of 2-7/16"
• C. Pickets: (with caps attached) 12 pieces of 7/8" x 3" varying from 52" to 45" Two pickets of each height
• D. Bottom Rail: 2" x 4" 71-1/2" Drilled to accept fasteners and plugs Drain holes are pre-drilled
• E. Post: 4" x 4" x 90" for in ground installation. Note: NO WOODEN POSTS NEEDED FOR SUPPORT
• F. Picket Caps: 12 pieces of 7/8" x 3" x 1" Dog Ear Picket Cap
