Automatic Gate Operator
Model CRS
Medium- Duty Swing Gate Operator

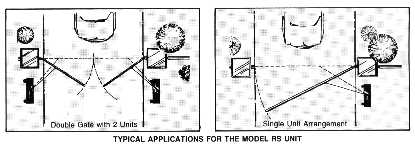

OSCO Model CRS Swing Gate Operators are designed
for use on single or double gates

CRS with Gate.jpg (41847 bytes)

MANUAL

Electrical Swing Automatic Gate Operator Specifications

Full Systems Capable; available for card control,
loop detectors, radio controls, and automatic closing devices
1/2 HP reversing Motor, 115 Vac or 230 VAC,
single phase
24V Control Circuit
All gate operators open with 3-Button Control
CRS operator comes with an easily adjustable cam-operated limit switches
Warning beeper to sound when gate is moving
Electrical power disconnect switch on all gate operators
Master-slave capability built in
Easily RH/LH convertible
Color-coded wiring

Mechanical Swing Automatic Gate Operator Specifications

Adjustable torque limiter
Heavy-duty 60:1 right-angle reducer
#40 Roller chain and sprockets
Padlockable disconnect pin for manual operation
New anti-pinch articulating arm
Overcenter locking gate
Heavy duty, galvanized, weather-resistant
enclosure with black powder coat finish
Removable cover
Dual-post or pad mounting

Model CRS Swing Gate Operator Features

CRS Operator.jpg (35467 bytes)

Model	Type Drive	Voltage Phase	Type Control	Maximum Gate Width	Gate Speed	Frequency of Operation	List Price	Order Now
CRS-211	Crank	115-1	Three Button	17 ft	13-17 secs.	15	$1,118.00
CRS-D-221 Battery	Crank	115-1	Three Button	17 ft	13-17 secs.	15	$1,608.00
CRS-221	Crank	230-1	Three Button	17 ft	13-17 secs.	15	$1,178.00
Double-swing-- Two Operators required- Slave capability is built in.
2500-2015 - 100 ft. cable Master//Slave communication wire ..........................

Automatic gate openers are our business. Call us with further questions we are pleased to serve you. (800) 878-7829
