Quick Specs:

  • 24 line LCD display
  • Up to 10,000 user capacity
  • Stainless steel front panel

Ruggedly built for everyday use - 16 gauge brushed stainless steel front panel.

A temperature-compensated, backlit, VGA resolution, LCD display presents up to 24 names at a time on separate alphabetical screens.

Its, friendly, automatic voice prompts guide visitors step-by-easy-step to simplify usage. That includes switching to provide instructions in either English or Spanish.

Configuration flexibility - 10,000 user capacity.

Keep a running check of all entrances and exits, the AE-2000
maintains a transaction log of the last 20,000 events.

Features:

  • Articulated, double-locking, stainless steel front panel
  • Temperature compensated, backlit VGA resolution LCD display
  • Backlitkeys
  • Up to 10,000 user capacity
  • Built-in RF receiver
  • Many installation choices: surface, recessed, gooseneck
  • Built-in modem for remote programming
  • Programmable via AccessBase 2000 Software
  • Four independently configurable output relays
  • Built-in access control for up to four portals
  • Network ready
  • Up to 256 interconnected portal capacity
  • Typical applications include apartment and condo complexes, high rise buildings, residential communities, industrial complexes
  • Access control functions, 32 validation (security) groups, 32 time zones, 32 door schedules, 32 floor schedules
  • RF frequency: 318 MHz
  • 15.25" W x 18.75" H x 4" D
Linear AE 2000 Entry System
General Specifications
Communications:
Full Duplex, hands free operation
Programmable Features:
Telephone Entry: 1-4 digit directory code length, display messages, talk time duration, extended talk time per user
OUTPUTS
Relay:
Relay: 4 form "C" relays; both can be configured for
open/close; all relay contacts have extensive RFI,ARC
and lightning suppression
Modem:
For remote programming - 33.6 Kbps
DISPLAY
Front Panel:
Temperature compensated VGA
LCD technology
Keypad Lighting:
Individual backlighting per key.
INPUTS
RF:
:Integral 318 MHz super heterodyne receiver (requires
optional AE-1000 or AE-2000 antenna).
PBUS:
3 sets for interconnection of up to six proprietary addressable devices.
Request To Exit:
4 normally open inputs; each input
assigned to specific relay.
Door Status :
4 normally closed inputs used to monitor the status of the device connected to the relay for a forced door/propped door alarm; supports auto-relock once the device is restored.
LEDs:
For configuration, status, and troubleshooting.
POWER

Power:

Input Power: 120 VAC, 60 Hz
Operating Power: 12 or 24 VAC or VDC
GENERAL
OPERATING TEMPERATURE:
-22° to +167° F (-30° to +75° C)
ANTENNAS:
AE-1000: remote, omni directional; includes mounting hardware and five feet of cable.
AE-2000: remote, directional-type; includes mounting hardware and ten feet of cable.
MEMORY:
10,000 users; each can have directory code, keypad entry
code, and card or transmitter; 20,000 event transaction
log; all data stored in field upgradeable FLASH memory.
CONNECTIONS:
All connections grouped together in neighborhoods for ease of installation and maintenance; wire connections via removable terminal blocks.
ENCLOSURE:
16 gauge powder coated steel cabinet; 16 gauge brushed stainless steel front panel with articulating double-lock configuration.
STANDARD EQUIPMENT:
AE-2000 Four Portal (with full access control) Telephone Entry system with built-in radio receiver, RS232 port, and modem for computer programming; accepts transmitters, keypads, and card readers as inputs; surface or gooseneck mounting standard.
DIMENSIONS:
Panel: 19" H x 15.25"W x 4"D
Trim Ring: 21" H x 17.25"W x 4"D

OPTIONAL EQUIPMENT:

CCM-1: color camera receives power from control board
CPDM-1: digital modulator combines video output of camera with CATV source to allow tenants to view on their TVs who is at the AE-2000.
TR-2000: trim ring for completely flush/recess mounting MIO Interface Module: multiple Input/Output modules or monitoring and control of additional points; can also be used for elevator control (call for availability).
No Phone Bill Interface: NPB interface modules allow AE-2000 to bypass central office and connect directly to user's phone system, eliminating need for phone line at AE-2000 (call for availability).

AE 2000 Entry System Screen Pictures
Click for larger picture

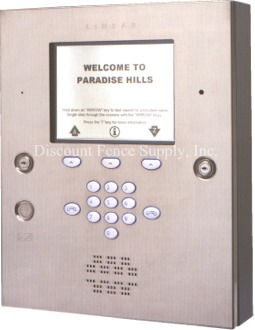

Linear Entry System AE-2000
Price list
Product
Description
Price
Order
ACP00895

AE-2000 Telephone Entry System
with access control
24 line LCD display

Linear Access order
Automatic Gate Entry System Linear
Compatible Linear Transmitters
Block Code Ability
Product
Description
Price
Order
MT-1B
Single Button Handheld Transmitter
Linear Access order
MT-2B
Double Button Handheld Transmitter
Linear Access order
ACT-31B
Single Button Miniature Transmitter
Linear Access order
ACT-34B
Four Button Miniature Transmitter
Linear Access order

Accessories
Product #
Description
Price
Order
TR-2000
Trim Ring for AE-2000
Linear Access order
AM-KP
Wired Keypad:
to allow access via a 1-6 digit entry code. Housed in a weatherproof metal enclosure.
Linear Access order
EXA-1000
Omni-Directional Antenna
Linear Access order
