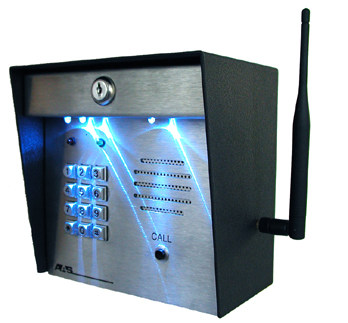

PhoneAire Wireless Telephone Entry System

Wireless Telephone Entry System

The wireless Telephone System that works

Finally there is a wireless telephone entry system that is worth the price. The American Access' PhoneAire is the answer. This wireless system is fully digital. We like this system because it allows the resident a superb method of screening who is at the gate before allowing them into the property. The main thing that makes this telephone entry system so fantastic however is that NOW you do not need to dig and run wire from the house. This wireless entry systems mounts directly to a pedestal or can be surface mounted. The PhoneAire’s receiver is mounted in a standard rain-tight enclosure with a baked enamel finish and mounts directly to the side of the home or main building.


How the PhoneAire Wireless telephone system works:

The wireless telephone system that is easy to use. When a guest presses the call button a unique ring cadence alerts someone that a guest is present at the gate. Communication is made from any phone on that line and access is granted by pressing the ** on the telephone’s keypad. The gate can also be opened from inside the building without someone present at the gate. This system features call forwarding, call waiting, “one-shot” code, sleep mode, full programming capability from the interior telephone, a manual override providing phone switching in the event of damage to the telephone entry unit and an optional pinhole camera (hardwired) for additional security. For pre-authorized entry, a fully programmable 500 code keypad is provided. The PhoneAire telephone entry is a “No Phone Line” telephone entry system, allowing you to use your existing telephone line without creating an addition to the phone bill.

Features

  • 500 access code capacity
  • Personal Master code
  • Call forwarding
  • Latch code
  • Sleep mode
  • Programmable “One -Shot” code
  • Fully programmable from telephone
  • 2 relays
  • Adjustable volume: microphone, speaker & phone tone
  • Event Input
  • Night Light “60 second on” capability
  • Unique ring cadence
  • By-pass switch included
  • Optional camera

General Specifications

  • Input: 12 VAC or VDC AC (transformer included)
  • Output: n/o or n/c contact 1-99 second
  • Operating temperature: -15 to 175 Fahrenheit
  • Dimensions: 7 3/8" H x 7 3/8" W x 5" D
    130mA continuous power usage
  • Ship weight/16-1055r & 16-1055t: 9 lbs.
  • Up to 3500 ft. communication range
    16-1055t Transmitter Unit
    16-1055r Receiver Unit

Relay Specs
DC Load
AC Load
Max. switching voltage
125V
125V
Max. carrying current
2A
2A
Max. switching power
60W
62.5VA
Contact Rating
2A @ 30V
.5A @ 125V
This revolutionary new phone system will redefine the way residential telephone systems are thought of. Simply install one unit at the gate and a receiver on the house by the phone box. That's it... you're done! No long distance wire runs needed. Just like the PhoneLink system, the AAS PhoneAire system will be 100% solar compatible. That way, there is no need to run any wires between the house and the gate. Simple, efficient and dependable... just what you expect from American Access Systems, Inc - Your Partner In Access Control!
Product Number
Description
Price
Buy Now
Keypad and Accessories
16-1055
PhoneAire - 500 Code
Discontinued
GN-1643
Gooseneck Stand
Discontinued
