Model BGU-D Barrier Gate
The best in Battery Back-up
Vehicle Traffic
 |
OSCO
Barrier-Gate Models BGU-D is the solution when a battery back-up is needed
in you operator system. This unit is to be used for parking
applications and revenue control.
Through switch
selections, the gate operator is universal and suitable
for all installation and operational functions. Switch selection
allows for full flexibility as to how and when the arm comes
down in traffic control situations.
The added advantage
to the DC operator is the automatic-open feature upon power
loss. When the gate opener senses AC power is no longer
present, the arm will cycle open, remaining open until AC
power is restored (fail safe) OR continues normal operation
while monitoring the battery level. Once the batteries are
low the unit will cycle open until AC power is restored
or the batteries receive a full charge (fail secure). |
Specifications for the OSCO
BGU-D Barrier Gate Operator
| Electrical
Specifications: |

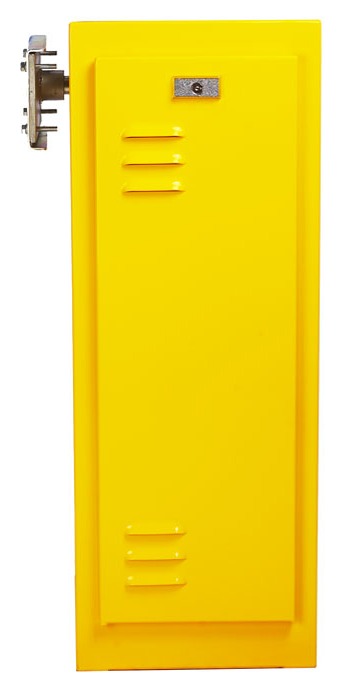

Cabinet:
- Weather-resistant galvanized
steel cabinet with powder coat finish
Warning Signals:
- Pre-start audio/visual outputs
provided
Options
for the BTU:
- 230V, single-phase operation
- Stainless steel cabinet for
installations in areas where high concentration of corrosive
materials is present
- Thermostatically-controlled
strip heater
- Arm light kit
|
- Dual batteries charged by
115 VAC or optional solar panels
- Charging circuit monitors
and maintains battery levels, monitors AC availability,
automatically switches to batteries when AC is removed,
and automatically resumes AC operation
- Control circuit options in
absence of AC power:
- Option 1: Fail safe (opens
the gate and shuts down until AC power is restored)
- Option 2: Fail secure (continues
to cycle gate in normal operation until batteries run down
and then cycles open. Resumes cycling when existing batteries
are charged or when fresh batteries are installed)

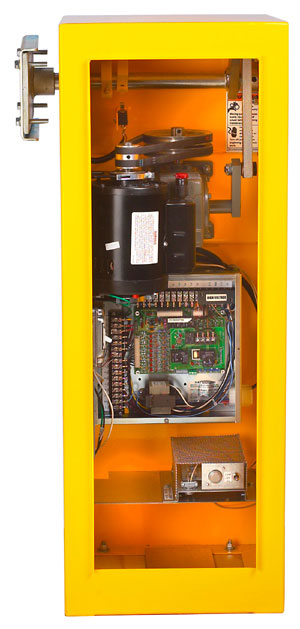

Mechanical:
- Dual V-Belt
- Heavy-duty right-angle oil
bath gear reduction
- Heavy-duty harmonic link
with oil impregnated bronze bushings
- Gate arm clamp with cutting
bracket
Anti-Entrapment/Detection
Devices:
Operator is pre-wired to accept
contact and non-contact detection devices such as reverse
edges and/or photo electric eyes.
Control
Circuit:
- Solid state circuit board,
24 VDC
- Inherent current sensing
system
- 15 LEDs for easy setup and
troubleshooting
- Built-in maximum run timer
and auto close timer
- Master/Slave - simple three-wire
connection
|
 |
Loop
detector are used with Parking Lot Gate Opener to detect the vehicle
as either a Free Exit Loop, reset loop, or a safety look.
To install cut the concrete and lay the wire in and then
run the wire back to the operator and then caulk over
the wire.
If
you need further assistance call our sales department
at 800.878.7829 between the hours of 8:00 AM - 5:00 PM
EST. or e-mail us at sales@fence-it.com.
|
Pricing for the OSCO BGU-D Barrier Gate
Operator with battery backup
| Model |
Application |
HP |
Voltage
Phase |
Shipping
Weight |
Arm
Size |
List
Price |
Order |
| BGU-D-10 |
Parking
applications and
provisions for single_button,
detector, radio, and three button
plus Battery Back-up |
1/2 |
115-1
Supply
or Solar |
200lbs |
10
ft. |
$2,585.95 |
|
| BGU-D-12 |
Parking
applications and
provisions for single_button,
detector, radio, and three button
plus Battery Back-up |
1/2 |
115-1
Supply
or Solar |
200lbs |
12
ft. |
$2585.95 |
|
| BGU-D-14 |
Parking
applications and
provisions for single_button,
detector, radio, and three button
plus Battery Back-up |
1/2 |
115-1
Supply
or Solar |
200lbs |
14
ft. |
$2,625.95 |
|
| Accessories
for the BGU |
| 2500-2207
- Low Voltage Surge suppressor ..................... $42.00 |
|
| 2510-262
- 115V Heater ............................................
$112.00 |
|
| 2800-111
- Articulating Arm for limited head room areas... $310.00 |
|
| 2650-057
- Adaption for shaft out opposite side............... $185.00 |
|
| 2650-088
- Adaption for opposite arm direction............... $20.00 |
|
2650-111
- Cold Weather Package ............................... $198.00
(includes heater, arctic oil, cogged belt) |
|
| Vehicle
Detectors for gate opening or reversing devices |
Deteck
Loop Detectors
2510-190 Single Detector prewired in operator, 24 VDC.....$270.00 |
|
| 2510-191
Two Detector prewired in operator, 24 VDC.....$530.00 |
|
 |
Caution:
Barrier gates are not for pedestrians! Automatic gate operators
are designed for vehicular traffic only.Tthey are powerful
and can cause serious injury or death. Accordingly, direct
all pedestrian traffic to a separate pedestrian gate. UL325
requires the use of contact or non-contact anti-entrapment
devices. ASTM F2200 requires that all exposed
rollers are covered. |
|
