Model
SWG

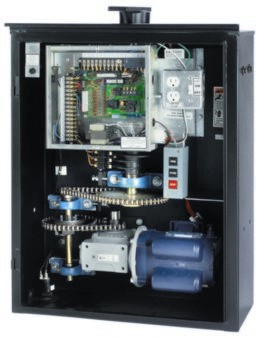

Automatic Swing Gate Opener
  |
The
SWG Automatic Swing Gate operator is for Commercial
and Industrial applications. This gate opener comes with a number
of features mentioned below and has the options of a 1/2 hp.
to a 1 hp. motor. You can get the SWG in a single or a three
phase voltage system and has the capacity to add a number of
accessories to make this automatic swing gate opener the perfect
solution for you gate needs. |
| Cabinet: |
Electrical: |
- Weather-resistant
galvannealed steel cabinet with powder coat finish
- Lockable,
gasketed, hinged and removable front cover for easy
|
- 1/2,
3/4 or 1 hp, 115 or 230 VAC, single phase, thermally protected,
heavy duty C-face PSC motor; 1/2, 3/4 or 1 hp, 230 or 460
VAC, 3 phase heavy duty motor
- Power
on/off switch
- Emergency
stop/reset button on front cover
- Duplex
receptacle on 115 VAC units
- Three-button
control station included
- Accessory
connections are 24-volt AC or DC
- Easily
adjustable rotary limit switches
- Full
system capable for access controls and reversing devices
|
| Mechanical: |
- Heavy-duty
60:1 right-angle C-face gear reduce
- Heavy-duty
gate arm assembly with harmonic design for smoother starts
and stops
- Over-center
gate arm "locking" angle
- #40
roller chain and sprockets
- Adjustable
torque limiter
- Heavy-duty
pillow-block bearings
|
Anti-Entrapment/Detection
Devices:
- Operator
is pre-wired to accept contact and non-contact detection
devices such as contact edges and/or photo electric photo
eyes
|
Manual
Release:
- Manual
release is is easily accessible
|
| Mounting: |
Control
Circuit: |
- 3
- 3 1/2" OD post mounting
- Optional
pad mounting pedestal available
Warning
Signals:
- Continuous
tone entrapment alarm
- Warning beeper to sound when gate is moving
- Pre-start
audio/visual outputs included
|
- Solid state circuit board, 24 VDC
- Inherent
current sensing system
- 15
LEDs for easy setup and troubleshooting
- Built
in maximum run timer and auto close timer
- Right-hand/left-hand
easy conversion
- Master/Slave
- simple three-wire connection
- Entrapment
Alarm
|
Model
SWG Swing Automatic Gate Opener Features
 |
Caution:
Barrier gates are not for pedestrians! Automatic gate
operators are designed for vehicular traffic only.Tthey
are powerful and can cause serious injury or death. Accordingly,
direct all pedestrian traffic to a separate pedestrian
gate. UL325 requires the use of contact or non-contact
anti-entrapment devices. ASTM F2200 requires that all exposed rollers
are covered. |
Automatic
gate openers are our business. Call us with further
questions we are pleased to serve you. (800) 878-7829
|
