Model BGU Barrier Gate
For Control of Vehicle Traffic
 |
OSCO

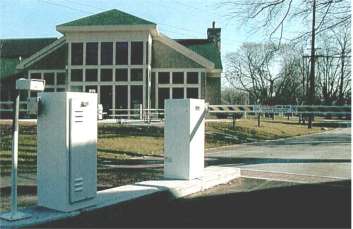

Barrier-Gate Models BGU and BGU-D can be used for parking applications and revenue control.
Through switch selections,
the gate operator is universal and suitable for all installation
and operational functions. Switch selection allows for full
flexibility as to how and when the arm comes down in traffic
control situations.
The added advantage to the
DC operator is the automatic-open feature upon power loss.
When the gate opener senses AC power is no longer present,
the arm will cycle open, remaining open until AC power is
restored (fail safe) OR continues normal operation while
monitoring the battery level. Once the batteries are low
the unit will cycle open until AC power is restored or the
batteries receive a full charge (fail secure). |

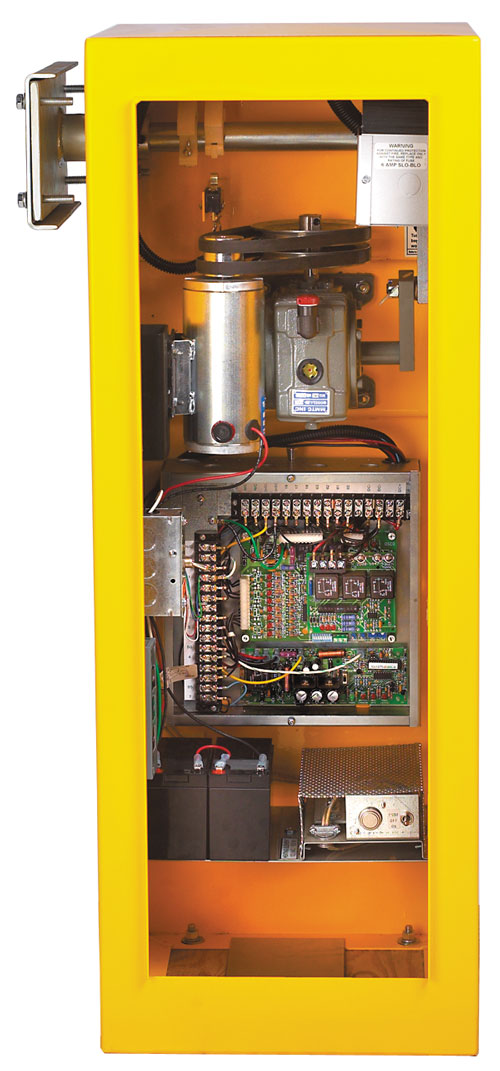

Specifications for the OSCO BGU Barrier
Gate Operator
| Electrical
Specifications: |
Cabinet: |
- 1/3 hp, 115 VAC, single-phase,
thermally-protected open-frame, resilient-mounted PSC
motor
- Power on/off switc
- Duplex receptacle (115
VAC units only)
- Three-button control station
included
- Accessory connections are
24-volt AC or DC
- Easily adjustable cam-operated
limit switches
- Motor has manually-resettable
overload
- Full system capable for
access control and reversing devices
Mechanical:
- Dual V-Belt
- Heavy-duty right-angle
oil bath gear reduction
- Heavy-duty harmonic link
with oil impregnated bronze bushings
- Gate arm clamp with cutting
bracke
Anti-Entrapment/Detection
Devices:
This Barrier Gate is pre-wired
to accept contact and non-contact detection devices such
as reverse edges and/or photo electric eyes.
Control
Circuit:
- Solid state circuit board,
24 VDC
- Inherent current sensing
system
- 15 LEDs for easy setup
and troubleshooting
- Built-in maximum run timer
and auto close timer
- Master/Slave - simple three-wire
commenction
Options
for the BGU:
- 230V, single-phase operation
- Stainless steel cabinet
for installations in areas where high concentration of
corrosive materials is present
- Thermostatically-controlled
strip heater
- Arm light kit
|
- Weather-resistant galvannealed
steel cabinet with powder coat finish
|
| Warning
Signals: |
- Pre-start audio/visual
outputs provided
|
|
|
|
|

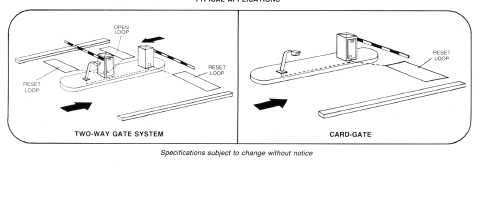

Loop detector are used with
Barrier Gates to detect the vehicle as either a Free Exit
Loop, reset loop, or a safty look. To install cut theconcrete
and lay the wire in and then run the wire back to the operator
and then caulk over the wire.
If you need further assistance
call our sales department at 800.878.7829 between the hours
of 8:00 AM - 5:00 PM EST. or email us at Customer
Support for Barrier Gates.
|
Pricing for the OSCO BGU Barrier Gate Operator
| Model |
Application |
HP |
Voltage
Phase |
Shipping
Weight |
Arm
Size |
List
Price |
Order |
BGU-10-311 |
Parking
applications and
provisions for single_button,
detector, radio, and three button |
1/3 |
115-1 |
200lbs |
10
ft. |
$2,085.00 |
|
BGU-12-311 |
Parking
applications and
provisions for single_button,
detector, radio, and three button |
1/3 |
115-1 |
200lbs |
12
ft. |
$2,085.00 |
|
BGU-14-311 |
Parking
applications and
provisions for single_button,
detector, radio, and three button |
1/3 |
115-1 |
200lbs |
14
ft. |
$2,125.00 |
|
|
| Accessories
for the BGU |
| 2500-2207
- Low Voltage Surge suppressor ...................... $42.00 |
|
| 2510-262
- 115V Heater ..............................................
$112.00 |
|
| 2800-111
- Articulating Arm for limited head room areas..... $310.00 |
|
| 2650-057
- Adaption for shaft out opposite side............... $185.00 |
|
| 2650-088
- Adaption for opposite arm direction.................. $20.00 |
|
2650-111
- Cold Weather Package ................................. $215.00
(includes heater, arctic oil, cogged belt) |
|
| Vehicle
Detectors for gate opening or reversing devices |
Deteck
Loop Detectors
2510-190 Single Detector prewired in operator, 24 VDC......$270.00 |
|
| 2510-191
Two Detector prewired in operator, 24 VDC........$530.00 |
|
 |
Caution:
Barrier gates are not for pedestrians! Automatic gate operators
are designed for vehicular traffic only.Tthey are powerful
and can cause serious injury or death. Accordingly, direct
all pedestrian traffic to a separate pedestrian gate. UL325
requires the use of contact or non-contact anti-entrapment
devices. ASTM F2200 requires that all exposed
rollers are covered. |
