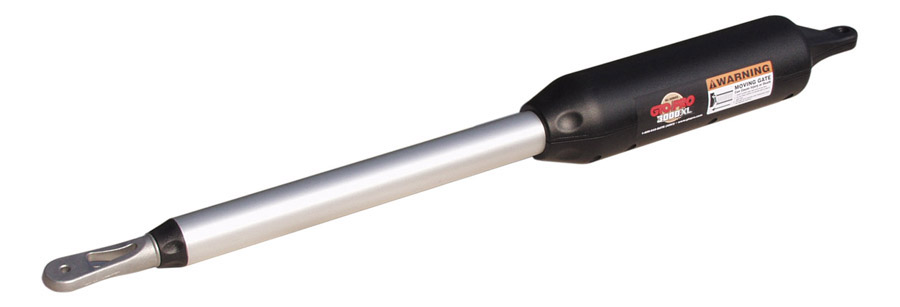

GTO SW3000XL Swing Gate Opener

SW3000XL

Lowest Price Guarantee
Call: 1.800.878.7829

Now offering FREE SHIPPING on all GTO Operators!


Description:

Designed for Chain link, Tubular steel or Ornamental Iron gates for residential, ranch or light industrial use.

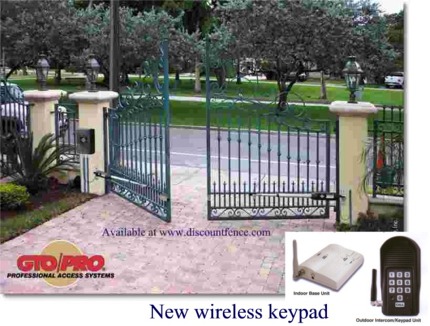

GTO/PRO SW3000XL/SW3200XL (FMSW3200XL) dual swing automatic gate opener system. The GTO/PRO SW3200XL works as a "slave" automatic gate operator when installed with the GTO/PRO SW3000XL. The PRO SW3200XL will work on gates that are 3.5 ft. to 16 ft. in length, and weighing up to 650 lb. The PRO SW3200XL wires into the "master" control box; the control board can be programmed for dual gate operation and the sequencing of the two gates. The PRO SW3200XL includes: operator arm w/ 50 ft. power cable, second operator wiring harness, mounting hardware, caution signs.


Features:

  • Handles gates up to 16' (4.88 m) long, up to 650 lbs. (226.8 kg) each leaf.
  • Full systems capable "add on ready" heavy-duty control board includes adjustable obstruction sensing, gate sequencing, and auto closing settings (0-120 seconds).
  • High cycle capability with true soft start and stop operation.
  • New sleek design with continental appeal
  • Full access ready package includes battery, radio receiver, entry transmitter, AC transformer, and all necessary mounting hardware for a complete installation.
  • Accommodates push or pull-to-open installations.
  • Solar option available
  • UL Rated for Class I, II, III and IV system certified to be in compliance with UL 325, 4th edition.

Buy GTO SW-3000XL Automatic Gate Opener
Description:
List Price:
Our Price:
Buy Now:
PRO-SW3000XL Gate Opener (Master)
$950.00
Discontinued
Replacement:
SW-3000XLS
PRO-SW3200XL Gate Opener (Slave)
$575.00
Discontinued
Replacement:
SW-3000XLS

GTO SW3000XL Gate Opener Accessories
Description
List Price
Your Price
Buy Now
RB741
1 Button Mini Transmitter RB741
$35.40
$19.00
.
RB742
2 Button Transmitter RB742
$47.86
$23.00
.
F310
Keypad GTO F300
$104.27
$64.00
.
11
Exit Wand FM140
$238.65
$149.00
.
..
Photoeye
$236.42
$129.00
..
.
Master Pin Gate Lock FM345
$35.45
$26.85
1





Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 14 inches.
The GTO/PRO SW4000XL can accommodate the combined length over 14 inches.

Technical Specifications:

DRIVE

  • Powered by a resilient 12 vt. DC motor.
  • Temperature rating of motor: -30 F To160 F
  • Opening time is 18-20 seconds.
  • Range of arm stroke is up to 24". Operator length with arm fully retracted is 39", mounting point to mounting point.

POWER

  • The PRO SW3000XL system is powered by a 12 volt DC /7.0 amp hour, sealed, rechargeable battery.
  • Battery charge maintained by a 120 V AC/60 HTZ input and 18 V AC at 40. Output, transformer rectified to 14 V DC through the GTO Control Board.
Optional: GTO Solar Panel Charger: Float voltage 14.5 V DC output from a 19-3/8" x 15-1/4" silicon alloy panel. Generates minimum of 10 watts at 600 ma. A gated diode on the control board prevents battery discharge.
NOTE: Transformer should never be connected directly to any Battery.

CONTROLS

  • The GTO control board can be programmed for pull-to-open or push-to-open.
  • Adjustable Auto Close, obstruction sensitivity and dual gate sequencing.



  • Auto-memorization of digital transmitter code.
  • Changing regulated circuit on control board. "Sleep draw" is 40 ma; "Active draw" is 2 to 5 amps.
  • GTO remote-mounted RF receiver tuned at 318 MHz.

OPERATIONAL CAPACITY
The PRO-SW3000XL will handle gates weighing up to 650 lbs. And up to 16ft. In length if all proper installation procedures have been followed. Note that ball bearing hinges should be used on all gates weighing over 250 lbs.

GATE CAPACITY CHART
(Estimated number of cycles per day based on use with a transformer

650 lb.
120
110
100
90
500 lb.
130
120
110
100
400 lb.
140
130
120
110
300 lb.
150
140
130
120
200 lb.
160
150
140
130
150 lb.
170
160
150
140
100 lb.
180
170
160
150
50 lb.
190
180
170
160
.
UP to 10 ft
12 ft.
14 ft.
16 ft
