The PRO-SW2000XL is a common selection for the basic residential gate application. Designed to address most chain link, tubular steel, vinyl, wood, aluminum and ornamental gate applications

Mounting Specifications

Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 14 inches. s
The GTO/PRO SW4000XL can accommodate the combined length over 14 inches.

GTO/PRO 2000XL Residential Series
FEATURES • Features GTO/PRO’s true soft start and stop operation. Open and close times from 15 seconds. • Full systems capable, single/dual control board includes an adjustable obstruction sensing, gate sequencing and auto close settings. • U.L. rated for Class I, II, III & IV. System certified to be in compliance with U.L. 325, 5th edition.

Now offering FREE SHIPPING on all GTO Operators!

Description	List Price	Our Price	Buy Now
PRO-SW2000XL Gate Operator (Master)		Discontinued	Replacement: SW-2000XLS
PRO-SW2002XL Gate Operator (Master & Slave)		Discontinued	Replacement: SW-2000XLS

DRIVE

• Powered by: a reliable 12 Volt (120 Watt) DC motor, 16:1 planetary gear drive system.
• Temperature rating: of motor:-5°F (-28°C)
to +160°F (71°C) battery rating
• Opening time: From 15 seconds.
• Range of arm stroke: is up to 11” (.3 m)

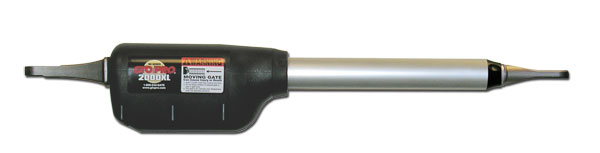

• Operator length with arm fully retracted is 33.75” (85.2 cm), mounting point to mounting point.

CONTROLS

• The GTO/PRO® control board can be programmed for
pull-to-open or push-to-open.
• Adjustable auto close, obstruction sensitivity and dual gate
sequencing.
• One button auto-memorization of digital transmitter code.
• Charging regulated circuit on control board. “Sleep draw”
is 20 mA; “active draw” is 2 to 7 amps.
• GTO/PRO® remote-mounted 318 MHz RF receiver and one
button transmitter included.

OPTIONS

• Solar Panel Charger: silicon alloy panel. Generates minimum of 10 watts at 600 mA. A gated diode on the control board prevents battery discharge. (FM123)

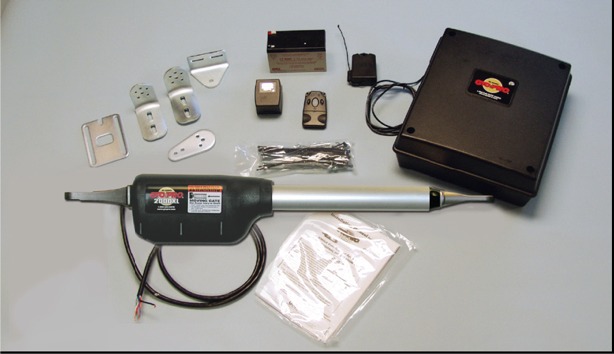

• The PRO-SW2002XL kit contains both the master arm and slave operator arm with a 32 foot (9.8m) power cable for a dual gate application.
• Push to open applications: Require one (349IH) bracket per operator.
