Transformers

The GTO Transformer

RB419 14 volt AC continuous cycle duty for PRO 2000/SL1000   (Not Available)

RB421 12 volt Transformer for Bulldog Lock

RB566 Transformer20 va, 18v for Pro 1000's (Not Available)

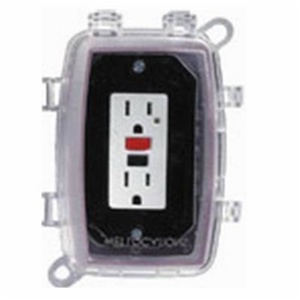

LP1100C Weatherproof Receptacle Cover (Not Available)


Batteries
GTO BATTERIES

BATTERIES All GTO Low Voltage Automatic Gate Openers are powered by a 12 volt DC/7.0 amp hour, sealed, rechargeable gel-cell battery. The life expectancy of these batteries is 3-5 years. Replacement batteries are available.
RB500 Rechargeable gel battery

The Bulldog Pedestrian Gate Lock is powered by a 12 volt/1.2 amp hour sealed, rechargeable gel-cell battery. Battery life is 3-5 years.
RB422 Bulldog rechargeable gel battery


Power Cables for Automatic Gate Openers
Power Cables

Available to for the GTO/PRO 1000 series operators:
AW202- 25' Power Cables Discontinued
AW240- 40' Power Cables  Discontinued

Available to for the GTO/PRO SL1000 series operators:
AC202- 60' Power Cables

Power Cables: These cables allow you to mount the control box farther away from the gate. These longer cables are available in lengths of 25 ft., and 40 ft.

Low Voltage Wire for automatic gate openers
GTO Low Voltage Wire

RB509-100 GTO Low Voltage Wire 100' Roll RB509-250 GTO Low Voltage Wire 250' Roll
RB509-500 GTO Low Voltage Wire 500' Roll
RB509-1000 GTO Low Voltage Wire 1000' Roll Not Available

GTO Low Voltage Wire is required for wiring the GTO Automatic Gate Opener to the AC Transformer. It is also necessary for connecting some accessories such as the Push Button Entry Control and the Digital Keypad (wired option). This wire is 16 gauge, dual conductor, multi-stranded, and is ready for direct burial.

This is the only wire recommended for use with GTO products. This 16 gauge, PVC sheathed wire will enable the transformer to provide an adequate charge to the control board from as far away as 1000 ft.

Do not use telephone wire or any solid core wire; this wire does not work as well as the multi-stranded and can cause the opener to go into low voltage lockout. Never splice wires together. Splicing will seriously reduce the wire's ability to carry an adequate current and it provides a weak point for corrosion.

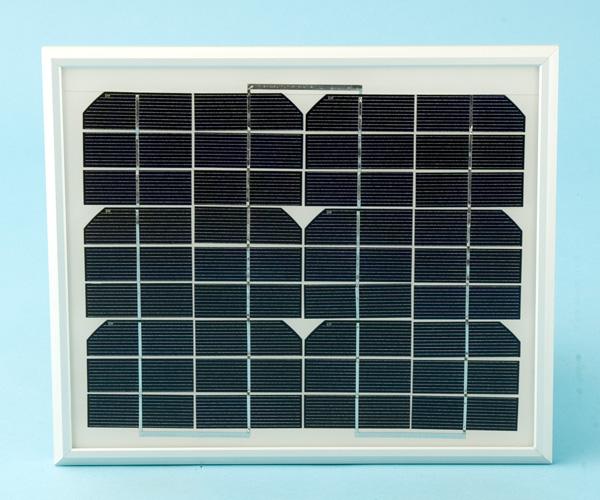

Solar Panels Automatic Gate Openers





sp10w





Solar Panels (For DC Operators)

The Solar Panel is a solar battery charger for the GTO Automatic Gate Openers. The Solar Panel is necessary for gate opener installations more than 1000 ft. from an AC power source, or where solar power is preferred. These solar panels come with mounting arms and 14ft. of low voltage wire.

FM123- 10 Watt, 600ma





The Solar Panel is a solar battery charger for the GTO Automatic Gate Openers. The Solar Panel is necessary for gate opener installations more than 1000 ft. from an AC power source, or where solar power is preferred. These solar panels come with mounting arms and 14ft. of low voltage wire.

SP10W- 10 Watt, 600ma (Not Available)
