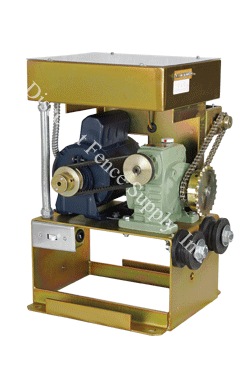

Control Board - The unique Diamond board uses state
of the art technology combined with easy of use to provide
many exceptional new features that cannot be found on any
Wire Maser/Slave - The Diamond board uses a unique
Master/Slave system that requires only two wires.
Brake - If the on position is selected, the gate will
stop instantly when it reaches the limit switches. This
is essential on uphill/downhill applications and on all
Fail Safe operations.
Pass - This tailgating feature works with the reverse
loop to allow only one car to pass. After the car passes
the gate closes instantly, if a second car approaches
the gate stops, and resumes closing once the car has left.
- This radio feature allows the transmitter to work as
a three-button station and is useful for partial opening.
The first command opens the gate, the second stops the
gate, and the third command will close the gate.
- The adjustable timer can be set from 1 to 60 seconds,
with a maximum run time of 60 seconds.
- If the motor reaches the stall amp for 3 seconds,
it will automatically shut down.
- The receiver terminal is mounted on the control box
for easy installation and is pre-wired for a 3-wire or
Steel Access Door - Offers full access to the control
board through the locking stainless steel door.
Opening - Can operate to either the left or right
- If the gate hits an obstruction while closing, it will
re-open. If it hits an obstruction while opening, it will
stop, reverse 6 inches and stop again. The sensitivity
is adjustable separately for the open and close cycles.
Inputs - The Diamond board's Global Inputs include
key switch, keypad, exit loop, phantom loop, reverse loop,
edge sensor, open, stop, and close.
- Outputs include on board 24 VDC for MAG Lock, alarm,
and 24 VAC auxiliary power.
Alarm - If the gate hits an object twice while closing
or opening, the system will shut down for 5 minutes. On
the Diamond board you have two options for reset mode.
Selecting the off position will require a manual reset
of the board if the previous happens. However, by selecting
the on position, the system will automatically reset itself.
VAC Power Outlets - The operator contains two 120
VAC Power Outlets for the users convenience.
on/off Switch - The operator has an easily accessible
power disconnect switch that allows for easy installation
Pinch Arm - This safety features prohibits the arm
from extending past the operator's body when the arm is
in the fully extended position.
- Five Year residential use.
